Majestic Diamond 1™ (MD1)

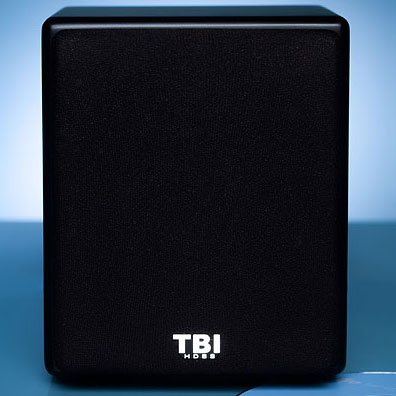

(Front)

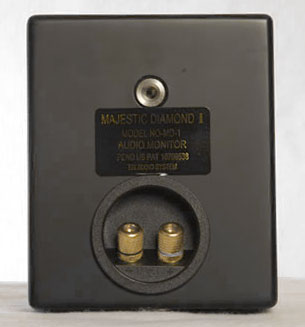

(Back)

(Side)

(Front w/o Grill)

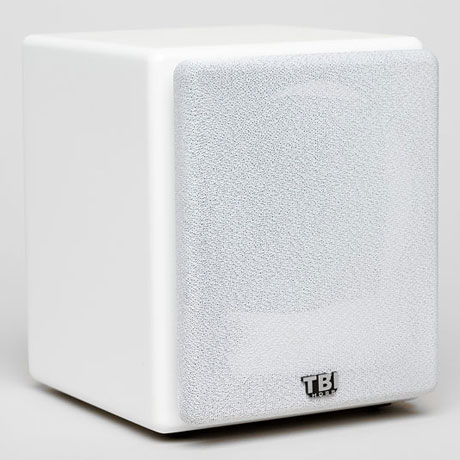

(Front)

(Side)

(Front w/o Grill)

The Majestic Diamond I™, represents one of the finest micro-monitors in in its class. We have developed a first of its type in sculpting the frequency response of the micro sized 3-inch driver entirely by internal acoustic means. The resulting product represents the High Definition Sound Standard™ (HDSS™) for a micro-loudspeaker.

The single driver is in theory, the optimal source for reproducing sound but it is generally used with very inexpensive speaker systems and a few high-end designs. Some current audiophile designs are now based on single drivers but the sound, although coherent, has many compromises associated with their use. With modern quality speaker designs a minimum of one additional driver and electrical crossover network are required to produce the full range of sound.

TBI Audio in creating the Majestic Diamond I™ was building on the legendary Majestic Diamond to strengthen its weaknesses. Although this wonderful sounding single driver speaker had all of the attributes of a high-end loudspeaker it suffered from lack of high frequency dynamics and extension. Its coherency more than made up for this weakness but designing a miniature speaker to respond to below 50 Hz was our primary goal. It was said that this was the main weakness of the small loudspeaker and after creating the ideal operating environment for our special designed low FA driver we had accomplished this. We had a choice of using a standard favored driver with high frequency extension but the mechanical methods used to provide extension reduced the musicality and bass extension was not sufficient. With room response to below 50 Hz in our unique ETL™ enclosure and on axis frequency response flat to 13kHz the Majestic Diamond was born and introduced to market in 2004.

Audiophiles who heard the magic of the original Diamonds immediately responded by saying why, with such coherent midrange and good bass extension, don't you add a tweeter? Add on tweeters don't figure into a single driver speaker coherency. Why, our engineers said, don't we integrate an ETL™ module that favors high frequencies with the main Embedded Transmission Line. Wow! The result was astounding and after careful tuning of this additional Embedded Transmission Line for a precise phase characteristic we were reducing high frequency cone breakup further not only extending the highs but also further improving high frequency dispersion and dynamics using the same single driver. A true breakthrough in loudspeakers!

We now have a micro dimensioned dual ETL™ speaker system with high frequency corrective acoustic pressure being generated by the signal itself with no crossover, driver path difference or dissimilar drivers reproducing the same notes. A driver this small can be designed as an excellent tweeter so continuous dispersion right through the upper highs is a non-compromising achievement. A driver this small has never even been considered for bass response right through the lower musical spectrum. An enclosure this small has never been considered for anything seriously musical and entertaining. This breakthrough is worth a celebration so we are introducing the marvelous Majestic Diamond I™ in four unique finishes to fit everyone's d?cor, lifestyle and budget. Now this High Definition Sound Standard™ (HDSS™) provided by the Majestic Diamond I™ can comfort you at home and accompany you wherever you may travel.

Specifications:

MODEL Majestic Diamond 1
DIMENSIONS ( cm )11.7Wx14Hx13D
DRIVER COMPLIMENT3 inch full-range paper cone
FREQUENCY RESPONSE70hz to 20khz (-6db)
IMPEDANCE ( ohm )8 nominal
SENSITIVITY87 db 1w
DISTORTIONless than 1% 100hz to 20k hz 3w input
POWER HANDLING20W RMS (100W IHF with 70hz HPF)
WEIGHT0.89kg
